ANC-Labo is a company specializing in Active Noise Control.

TEL. +81-78-747-2722

5-12-44,Hiyodori-dai,Kita-ku,KOBE,651-1123,JAPAN

Japanese

ANC-DuoANC-Duo

Outline

Controller

Control speaker

Sensor microphone


Outline

・Standard type: max. 115dB low-frequency（Special type: max. 130dB).
・Input: 3 microphones, Output: 2 speakers.
・Weather-resistant and drip-proof stainless speaker.
・Weather-resistant and drip-proof aluminum microphone.
Controller brochure
ANC-Duo system brochure

Controller

・ Control feature: FeedForward Case(1-2-2), FeedBack Case(2-2) frequency band-limited.
・ Sampling frequency: 48KHz, 24KHz, 12KHz, 8KHz, ．．．．,125Hz.
・ 3Ch microphone/Line inputs, 2ch speaker/Line outputs.
・ Power source: AC100〜230V.

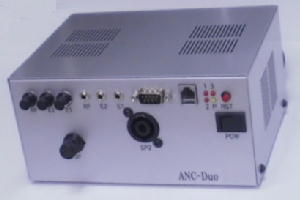

Controller (standard)


　　　　
・ Built-in 250W x 2Ch digital power amplifier.
・ Size: 182W × 88H × 140D 1.5Kg．

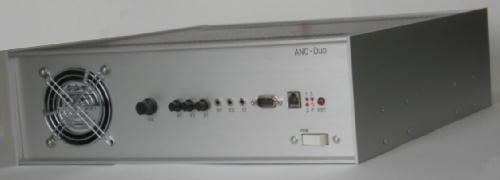

3KW controller


・ Built-in 1500W x 2Ch digital power amplifier.
・ Size: 370W x 115H x 430D 8Kg

Control speaker

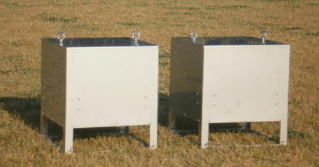

Speaker (standard)


・ Unit: 300W(AES) 300mm woofer.
・ 115dB (at 90Hz).
・ 360W x 400H x 360D 15Kg x 2pieces/system.
・ Stainless drip-proof.

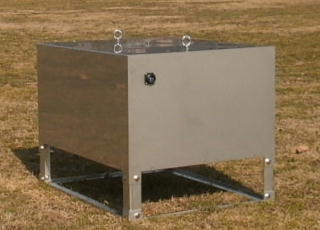

130dB type speaker


・ Unit: 1600W(AES) 460mm woofer.
・ 130dB (at 90Hz).
・ 510W x 640D x 485H 51Kg x 1piece/system.
・ stainless drip-proof.

Sensor microphone

・ Drip-proof.
・ Max. sound level: 130dB(Type L), 140dB(Type H).
・ Size: 80W x 135L 0.35Kg.
